SUSPENDED PLATFORM

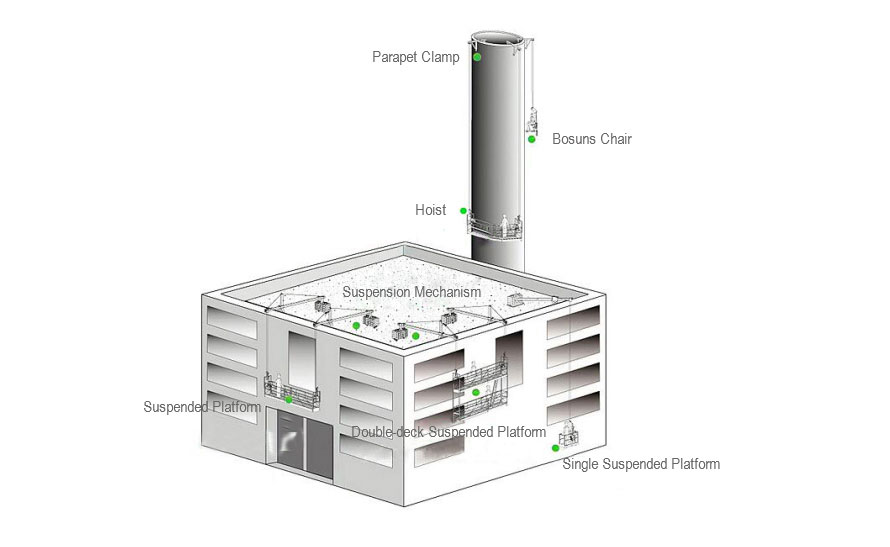

COSMO Brand ZLP series Temporarily Installed Suspended Access Equipment is an
ideal working access for fa?ade works of high-rising buildings as facade construction,
decoration, maintenance and so on. And it is also widely used into elevator installing, ship
building and repairing, or in other works such as big-size tank, bridge, embankment and chimney.
It is easy for operation, flexible for moving, reliable in safety. It can take the place of construction scaffolding, improve the efficiency and save cost. Above all, COSMO Platforms provide a safer, easier and more efficient working access for workers.
It is easy for operation, flexible for moving, reliable in safety. It can take the place of construction scaffolding, improve the efficiency and save cost. Above all, COSMO Platforms provide a safer, easier and more efficient working access for workers.
| Type Property | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load（kg） | 500 | 630 | 800 | 1000 | |
| Lifting speed（m/min） | 9.3 | 9.3 | 8.2 | 8.2 | |
| Motor power（kw） | 2*1.5kW | 2*1.5kW | 2*1.5kW | 2*1.5kW | |
| Brake torque（Nm） | 15 | 15 | 16 | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | |
| Distance between two steel rope（mm） | ≤100 | ≤100 | ≤100 | ≤100 | |
| Rated stretch of front beam（mm） | 1300 - 1700 | 1300 - 1700 | 1300 - 1700 | 1300 – 1700 | |
| Working Platform | Safety Lock | LSB30 | LSB30 | LSB30 | LSB30 |
| Nr.Of platform rack | Single-deck | Single-deck | Single-deck | Single-deck | |
| Nr.Of platform(pcs) | 2 | 3 | 3 | 3 | |
| L×W×H（mm） | (2500×2)×690×1180 | (2000×3)×690×1180 | (2500×3)×690×1180 | (2500×3)×690×1180 | |
| Weight（kg） | 300 | 360 | 450 | 450 | |
| Suspension mechanism(kg) | 2×175kgs | ||||
| Counterweights(kg) | 750 | 900 | 1000 | 1250 | |
| Diameter of steel rope(mm) | 8.3 | 8.3 | 8.6 | 8.6 | |
| Lifting height(m) | 100 | 100 | 100 | 100 | |
| Motor rotation speed(r/min) | 1420 | 1420 | 1420 | 1420 | |
| Voltage(V) | 220/440V,3 Phase | 220/440V,3 Phase | 220/440V,3 Phase | 220/440V,3 Phase | |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | |
| Hoist | Ltd 5.0 | Ltd 6.3 | Ltd 8A | Ltd10 | |
